Product Description

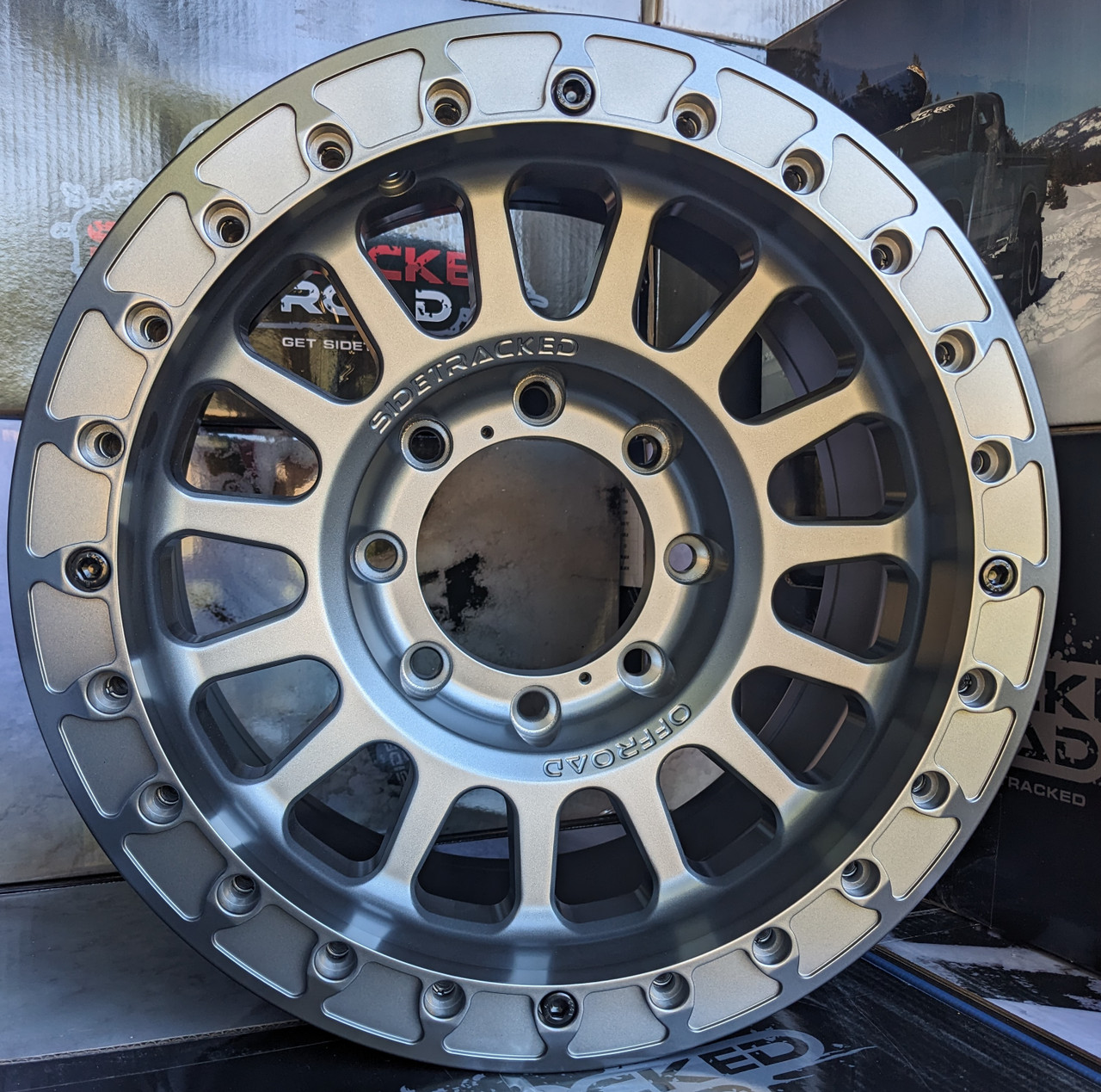

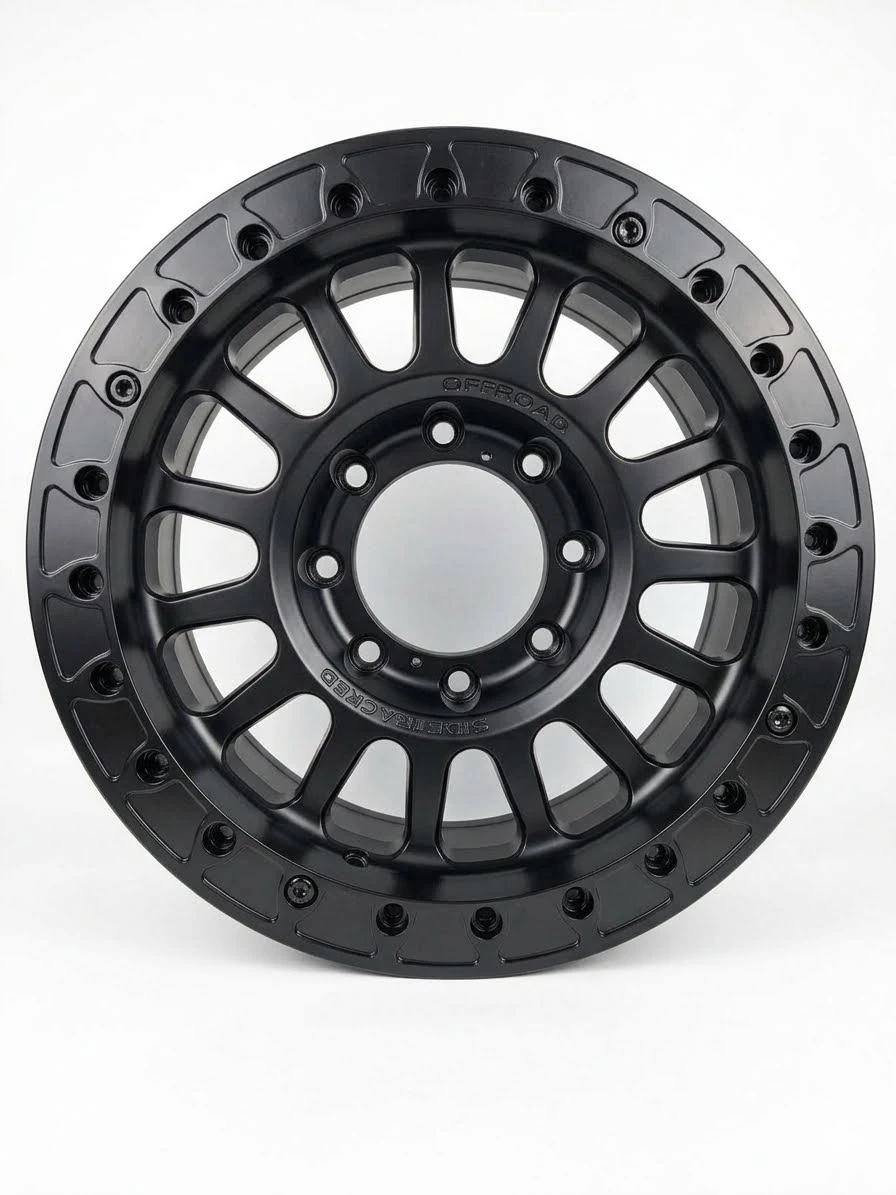

Our Forged Aluminum 24 bolt beadlocks are now available! These forged wheels provide additional strength and weigh less than our cast wheels, while still maintaining an affordable price point. The Aluminum wheels offer countersunk allen head screws and a machined, forged beadlock ring. They come with valve stems and hardware. These wheels have a redundant set of threaded holes in case they ever get damaged, you can put new inserts in the extra holes instead of having to repair threads or junk an otherwise good wheel. We've added knurling to the wheel bead mating surface to further help retain the tire bead. We've also added a titanium finish option and a 6x5.5 pattern for 5/8 wheel studs.
You can now select a smooth ring instead of the machined ring as well as different ring colors.
Wheels are 17x9"
Weight rating is 3750 lbs
Available in 5x5, 5x5.5, 6x135, 6x5.5, 8x6.5 and 8x170 lug patterns
8x6.5 lug Center Bore is 130.8 mm. Offset Options: -38/3.5" backspacing, -20/4.25", +15/5.6"
8x170 lug Center Bore is 130.8 mm. Offset -12, Backspacing is 4.5"
6x5.5 Center Bore is 110.2 mm. Offset Options: -38/3.5" backspacing, -12/4.5", 0/5", +15/5.6"
Note: For 6x5.5 unit bearing applications with 5/8" studs, choose the "6x5.5 - 5/8 stud" option. These are only available in machined finish with -12 offset, 4.5" backspacing. Lug nut access holes accommodates a 1" standard socket
6x135 Center Bore is 87.1 mm, Offset +15, Backspacing is 5.6"
5x5.5 Center Bore is 110.2 mm. Offset -38, Backspacing is 3.5"
5x5 Center Bore is 71.6 mm. Offset -38, Backspacing is 3.5"
Not DOT Approved - For off road use only
